Description

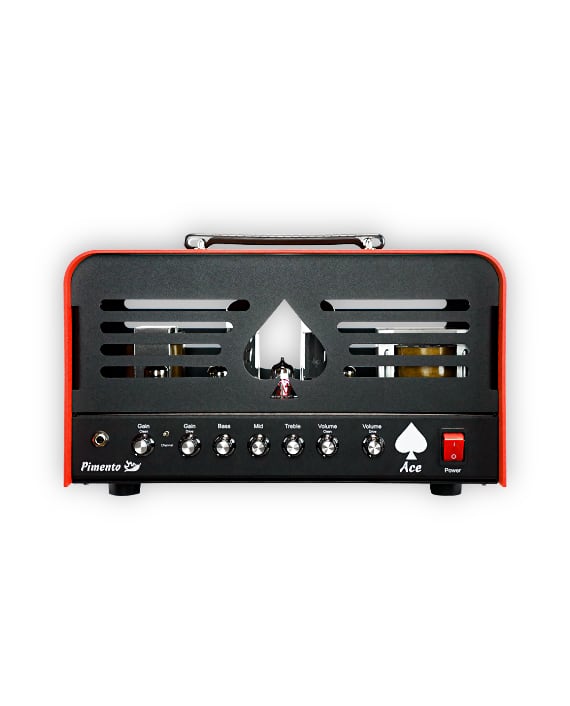

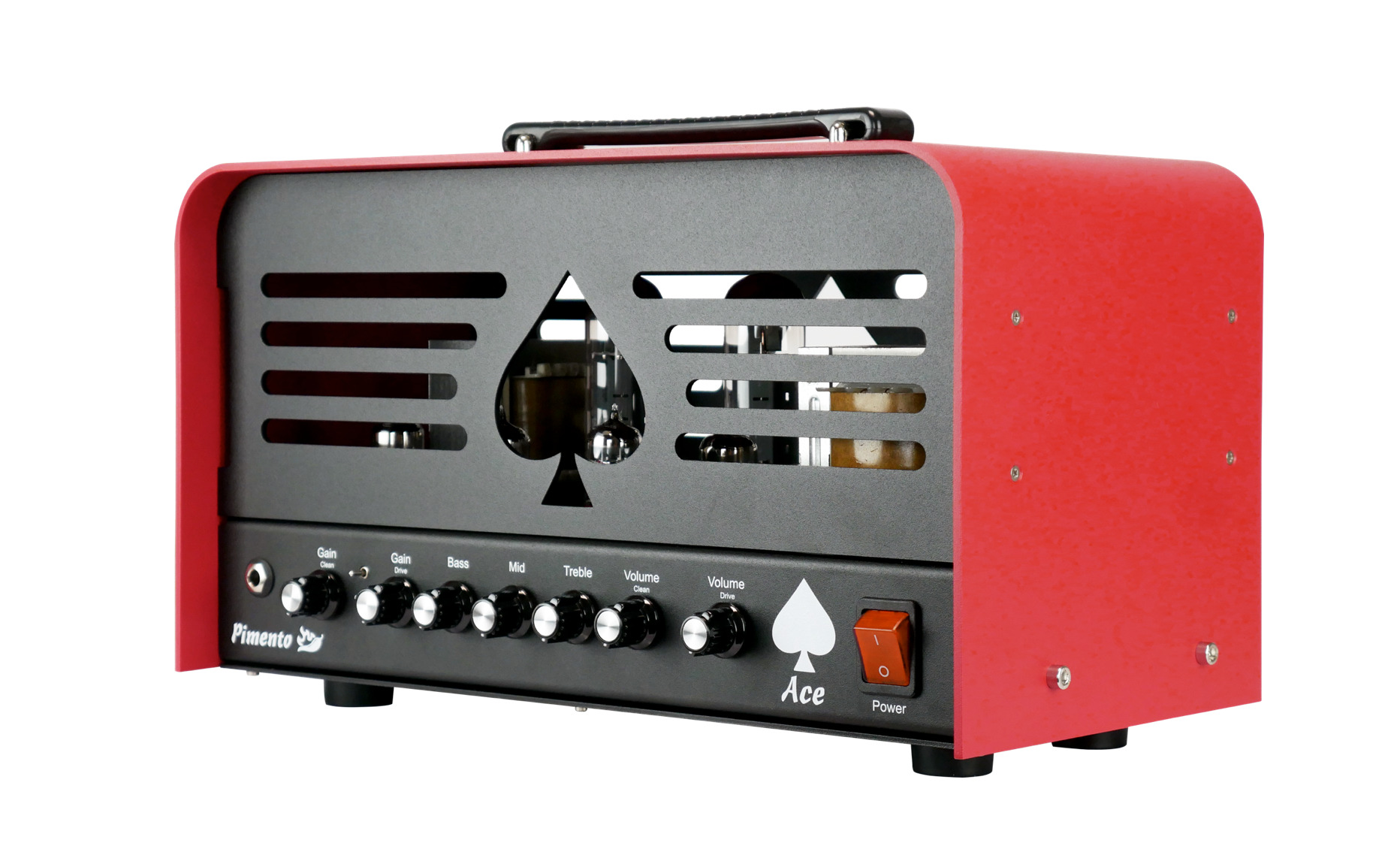

PIMENTO
The new Pimento is the spiciest of all ACE amplifiers.
20w of warm and bright sounds, and fatter JCM sounds.
2 channels, EL-34 20w power section, tube effect loop.
Clean to crunch channel, inspired from early blackface sounds, and a drive channel inspired from famous JCM sounds, but fatter and spicier.
Quiet play
The ACE Pimento uses the special “ultralinear master volume” technology, introduced by the Fxamps amplifiers, designed to play at any level, even at very low level at night. It even has a 20w/2w for the most quiet conditions.
No Bias System
Change your tubes yourself, at home, no equipment needed. Freely choose between 6L6 and EL34 power tubes, you can even mix a 6L6 and an EL34.
Specifications
All tube circuits, inclunding effect loop. Speaker outputs 8ohms + 16ohms. Optional footswitch for chanel switching.
All aluminium chassis, for minimum noise and super light weight.
Custom oversized transformers.

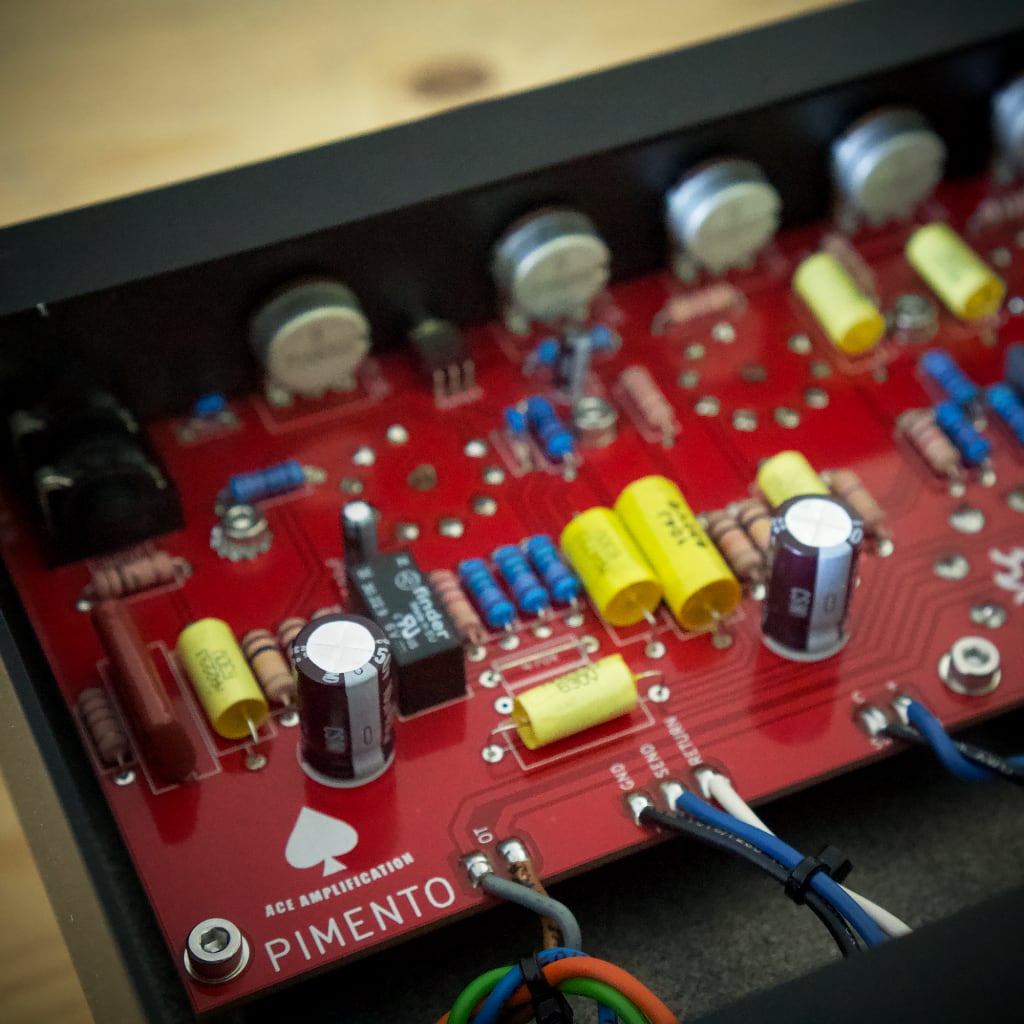

Super 2mm thick and durable circuit boards, with double copper thickness for better reparability.
High quality components.
4 x 12ax7 + 2 x EL34 JJ tubes.
37cm x 20cm x 20cm – 7kg500 only !
-

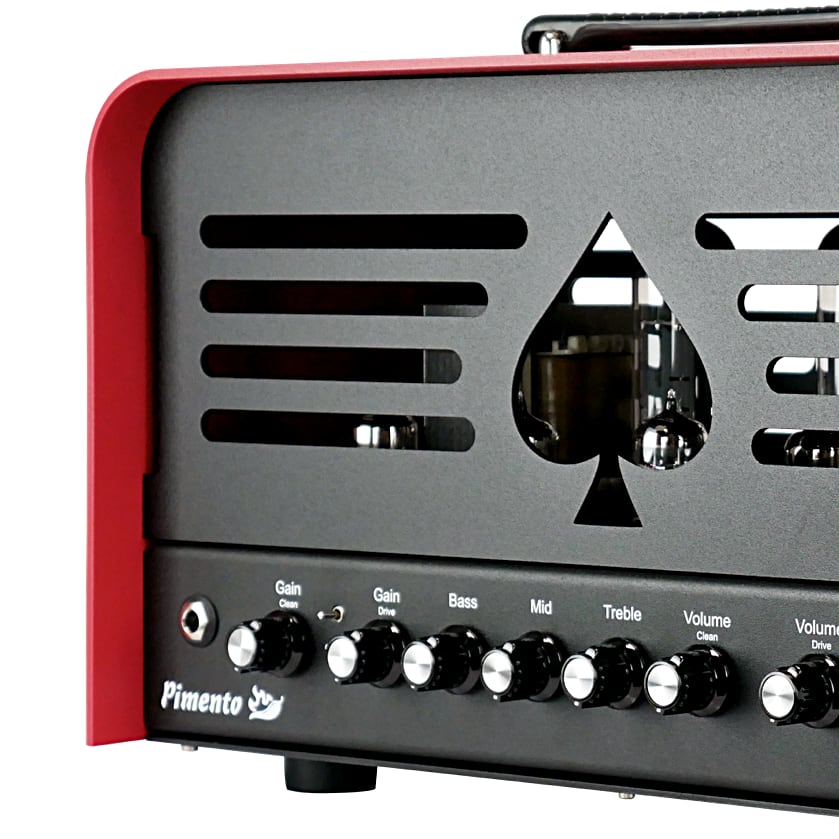

Controls :
Gain1/Gain2/Bass/Mid/Treble/Volume1/Volume2.
-
Features :
Tube buffered effect loop, 8 + 16 ohms speaker outputs.
-
Power :
Single ended, Class A, 20w switchable to 2w. 230v.
-
Tubes :
4x 12ax7 + 2x EL34. User swappable/mixable EL34/6L6 power tube, no bias needed.
-
Construction :
High quality PCB.
-
Dimensions :
37cm wide, 2ocm high, 2ocm deep & 7kg500.
Recommended speaker :
Celestion g12m creamback (Fxamps 1×12″ classic).
